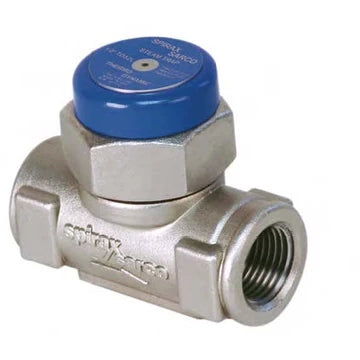

Thermo-Dynamic® Steam Trap TD52
Thermo-Dynamic® Steam Trap TD52
The Thermo-Dynamic® steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by waterhammer or superheat.
- Model: TD52
- PMO: 600 psig
- Sizes: 3/8”, 1/2”, 3/4”, 1”
- Connections: NPT
- Construction: Stainless Steel
Couldn't load pickup availability
Typical Application
Typical Application
Steam main drainage and tracer lines, process equipment, laundry and kitchen equipment, superheated steam applications, out-door installations subject to freezing.
Limiting Operating Conditions
Limiting Operating Conditions
Limiting Operating Conditions
Max. Operating Pressure (PMO) 600 psig (42 barg)
Max. Operating Temperature 800˚F (427˚C) at all operating pressures
Minimum pressure for satisfactory operation is 3.5 psig, (0.24 barg).
Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut.
Pressure Shell Design Conditions
PMA Max. allowable pressure: 600 psig/up to 800˚F 42 barg/up to 427˚C
TMA Max. allowable temperature: 800˚F/0-600 psig 427˚C/0-42 barg
