Spirax Sarco

Pilot Operated Pressure Regulator

$720.57 USD

Sale Sold out

The 25P is a self-actuated pilot operated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot, which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.

Model: 25P
Sizes: 1/2" to 4"
Connections: NPT, ANSI 125 flgd., ANSI 300flgd.
Construction: Cast Iron, Cast Steel

Quantity

Typical Application

The 25P is a reliable, accurate regulator to reduce steam from a high supply pressure to the most efficient operating pressure of the equipment, and to protect the equipment from dangerously high pressures.

Downstream Pressure Ranges

For the following downstream pressures, three color-coded pilot valve springs are available:

Yellow: 3 to 30 psi

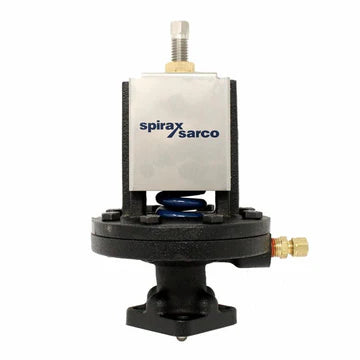

Blue: 20 to 100 psi

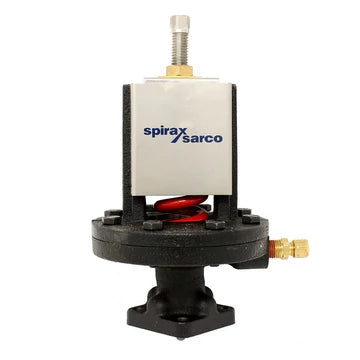

Red: 80 to 250 psi

Download Data Sheet
