Watson McDaniel

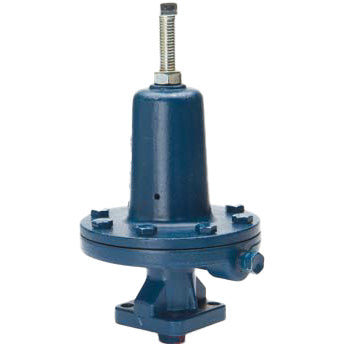

Pressure Regulating with PP Pilot

Pressure Regulating with PP Pilot

$516.60 USD
$516.60 USD
Sale Sold out
  • The PP-Pilot can maintain downstream pressure to ±1 PSIG
  • Choices of three overlapping pressure ranges
  • Pilot is easily installed on pilot adapter using four bolts, no tubing connections are required
  • Full port strainer and blowdown valve on pilot adapter for protection of pilot from dirt and scale
  • Solid floating diaphragm is more failure resistant

Typical Application

The PP & PP5 Pressure Pilots are used with the HD Regulator to control steam pressure in steam mains or for process equipment. Pilot-operated regulators maintain constant downstream pressure even when the inlet pressure to the valve fluctuates or steam usage varies. The PP-Pressure Pilot is adequate for controlling pressure in most industrial applications. For increased accuracy use the PP5 Pilot.

Limiting Operating Conditions

Max Inlet Pressure 300 PSIG
Reduced Outlet Pressure Range 3-200 PSIG
Inlet Pressure Range
(with HD Standard main valve) 15-300 PSIG
(with HD Low-Pressure (LP) main valve) 5-20 PSIG
Minimum Differential Pressure
(with HD Standard main valve) 10 PSI
(with HD Low-Pressure (LP) main valve) 3 PSI

Download Data Sheet
