Spirax Sarco 25P Overview
The Spirax Sarco 25P is a workhorse in steam pressure regulation. Designed for accurate control and dependable operation, it’s widely used across industrial plants, HVAC systems, and process equipment. As a pilot-operated pressure regulator, it’s built to handle higher capacities and provide more stable pressure than direct-acting designs.
Whether you’re replacing an existing unit or specifying one for a new system, understanding the 25P’s capabilities will help ensure you select the right model the first time.
How the 25P Works
This regulator uses a pilot-operated mechanism where downstream pressure is sensed through an external line and communicated to the pilot valve. The pilot adjusts the opening of the main valve to maintain the set outlet pressure.
Key benefits include:
- Precise pressure control across varying loads
- Higher flow capacity for its size
- Tight shut-off when steam is not required (ANSI/FCI 70-2 Class IV)
Typical Applications
- Process equipment such as heat exchangers, sterilizers, and jacketed vessels
- HVAC systems in commercial and institutional buildings
- Industrial plants requiring safe, efficient steam pressure reduction
Sizing and Selection Tips
When choosing a 25P, consider:
- Connection size & type – Available from ½" to 6" in NPT or ANSI flanged options, cast iron or cast steel.

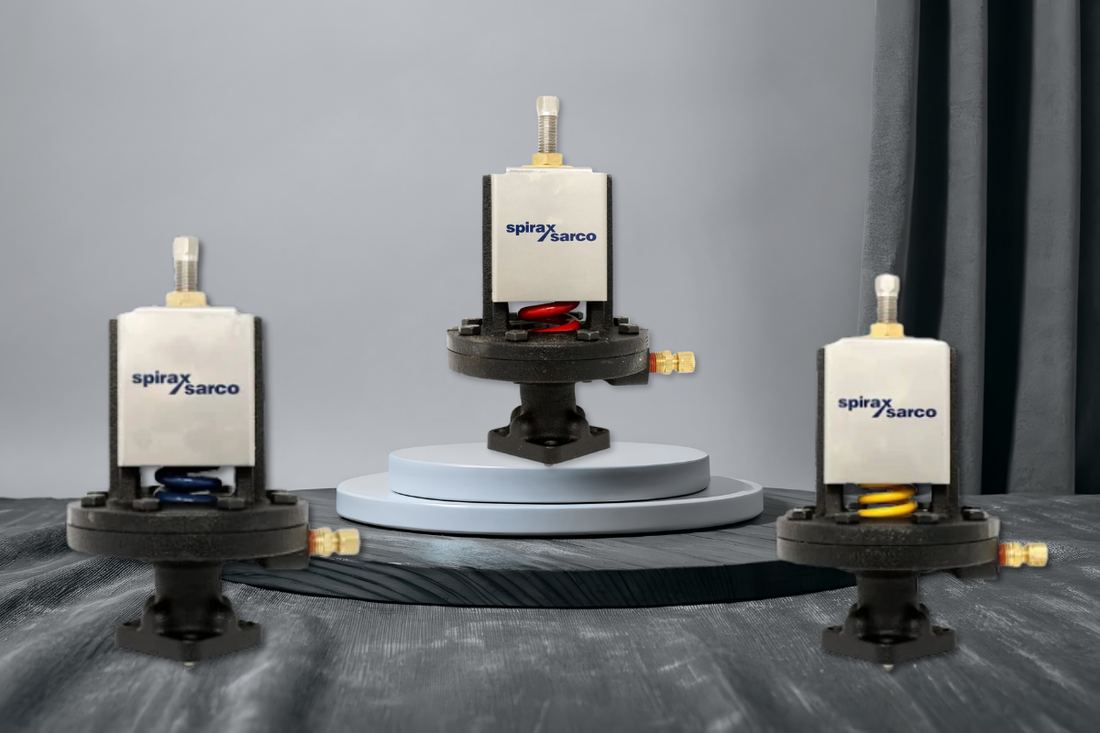

- Pressure range – Choose the correct pilot spring:
- Yellow: 3–30 psi
- Blue: 20–100 psi
- Red: 80–250 psi (up to 240 psi for 6" models)
- Flow capacity – Match Cv values to your load requirements using capacity charts.
- Operating environment – Select cast steel for pressures above 250 psig or high-temperature service.
Installation Best Practices
For optimal performance:
- Install in a horizontal run with bypass and isolation valves
- Use a steam trap upstream to protect from condensate
- Fit a strainer before the regulator to prevent debris damage
- Place the sensing line at least 10 pipe diameters downstream from the nearest fitting
Seasonal Planning Tip
Cooler weather will put more demand on steam systems. Late summer is the ideal time to review regulator performance, replace worn units, and ensure system stability before the heating season begins. If you’d like assistance selecting or sourcing a Spirax Sarco 25P, contact our team to match the right model to your exact operating conditions and delivery schedule.
