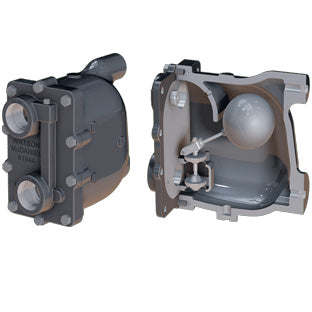

Float & Thermostatic Steam Trap FTE Series
Float & Thermostatic Steam Trap FTE Series
Features
- Ductile Iron has a higher pressure and temperature rating and is more resistant to shock loads than Cast Iron
- Cast Steel Body will allow operating pressures and temperatures up to 300 PSIG and 450˚F
- High capacity steam trap for draining large process equipment (over 100,000 lbs/hr)
- All stainless steel internals with hardened seat and wear parts
- In-line repairability is simplified by having all internals attached to the cover
Couldn't load pickup availability
Typical Application
Typical Application
PROCESS: FTE & FTES Series are high capacity steam traps specifically designed to remove condensate and air from HVAC and industrial process applications with extremely high condensate load requirements. Examples include reboilers, absorption chillers, large air-handling coils, large heat exchangers and other large process equipment. They are available with a ductile iron (FTE) or steel body (FTES) and contain a high quality welded stainless steel thermostatic air vent and stainless mechanism. F&T traps have excellent air-handling capability, making them a better choice than Inverted Bucket traps for most process applications.
Limiting Operating Conditions
Limiting Operating Conditions
PMO Max. Operating Pressure 200 PSIG
TMO Max. Operating Temperature 450ºF
PMA Max. Allowable Pressure 300 PSIG up to 450ºF
TMA Max. Allowable Temperature 450ºF @ 300 PSIG
